Electronic Components Line Card

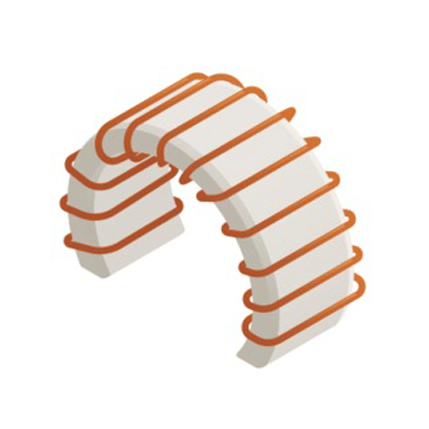

We have an extensive lineup of inductors covering a wide range of sizes from 1.6 mm x 0.8 mm to 12 mm square, which are manufactured using multiple techniques that include metal alloy wire wound construction technique and ferrite multilayer technique.
We offer the optimum inductors for a wide range of applications including wearable devices, smartphones, medical applications, industrial electronics, and on board devices.

Our client is a global technology company that designs, develops, and supplies a broad range of semiconductor and infrastructure software solutions. It is known for its products in data center networking, home connectivity, broadband access, telecommunications equipment, smartphones, and base stations.

We also offer Advanced Driver Assistance Systems (ADAS) and infotainment systems are expected to be significant contributors to this growth.

Our ceramic capacitors are developed in very small sizes and exhibit low maximum rated voltage. They are said to be non-polarized, i.e. can be safely connected to an AC source. Ceramic capacitors deliver greater frequency responses because they exhibit low parasitic effects such as inductance and resistance.

Most transistors are made from very pure silicon, and some from germanium, but certain other semiconductor materials are sometimes used. Our transistor may have only one kind of charge carrier in a field-effect transistor, or may have two kinds of charge carriers in bipolar junction transistor devices. Certain transistor models have advantages over transistors at very high operating frequencies or high operating voltages, such as Traveling-wave tubes and Gyrotrons. Many types of transistors are made to standardized specifications by multiple manufacturers.
